Foshan Sino Packaging Machinery Equipment Co., Ltd. is an intelligent manufacturing factory that mainly develops and produces medical dressing production lines, medical equipment production equipment and multi-functional medical packaging machines. The series of high-quality medical packaging machines developed and manufactured are widely used in the pharmaceutical, medical equipment and sanitary products industries, and are sold to domestic and foreign markets, and are highly praised by users.
The SN-250FK double-pass packaging machine is a new packaging machine that has been optimized and redesigned many times by professional technicians of Sino Factory based on their long-term experience in manufacturing four-side sealing packaging equipment and combined with the experience and suggestions put forward by the majority of users in use.
Main optimization features
1. The color touch screen operation interface is simple to operate;
2. Adopt scientific servo drive system;
3. The PLC programmable controller intelligently controls the operation of the whole machine, with the advantages of accurate film feeding, stable material transmission, and accurate bag cutting.
4. Independent guide column mold frame, mobile synchronous heat sealing system, more uniform and stable sealing surface temperature, tight edge sealing, durable! .
5. More adaptability to packaging materials of different thicknesses and materials.
Conventional process flow
Manual placement → bagging → bag making → sealing → cutting → packaged product delivery
Device parameters
Model | SN-360FK |
Bag size | (L)150* (W)80mm (Depend on product) |
packing speed | 40-80 bags/min |
Packing material | Laminated paper + coated paper, coated paper + composite transparent film, Φ≤350mm |
Air consumption | ≥30m3/h (self-provided), pressure: 0.6-0.8Mpa |
Power voltage | 2 20v 50Hz/60HZ 5.5KW |
Machine size | (L×W×H) 4000×1300×1600mm |
Machine weight | 600 kg |

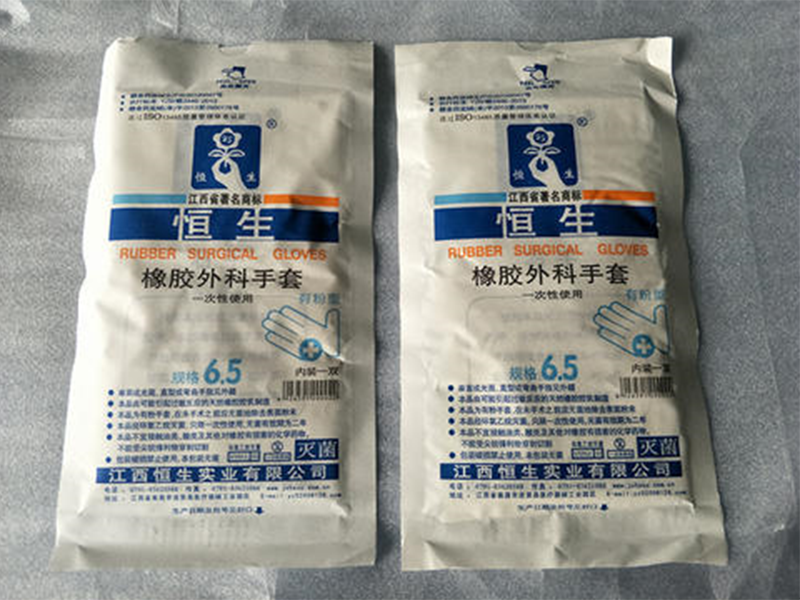

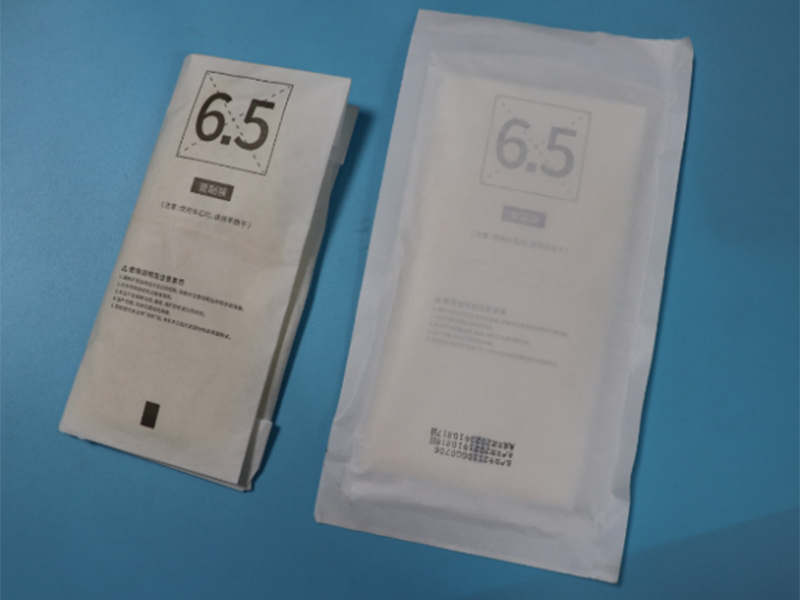

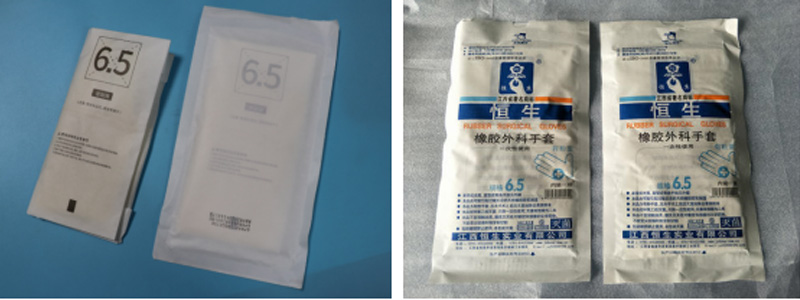

Packaging renderings
